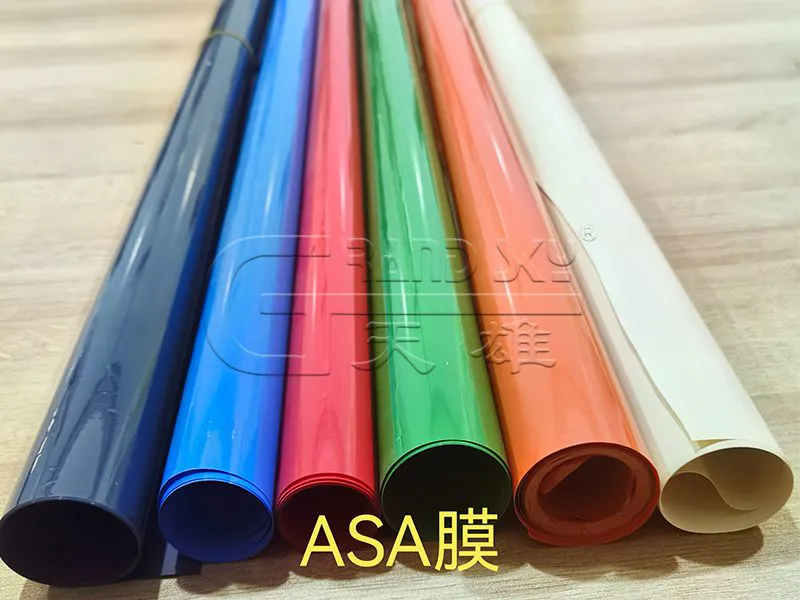

ASA film series product is a kind of polymer material film produced by casting extrusion with styrene-acrylonitrile-methyl acrylate as the main raw material.
ASA film series products have the following characteristics : High weather resistance, high tensile, high coverage, etc.

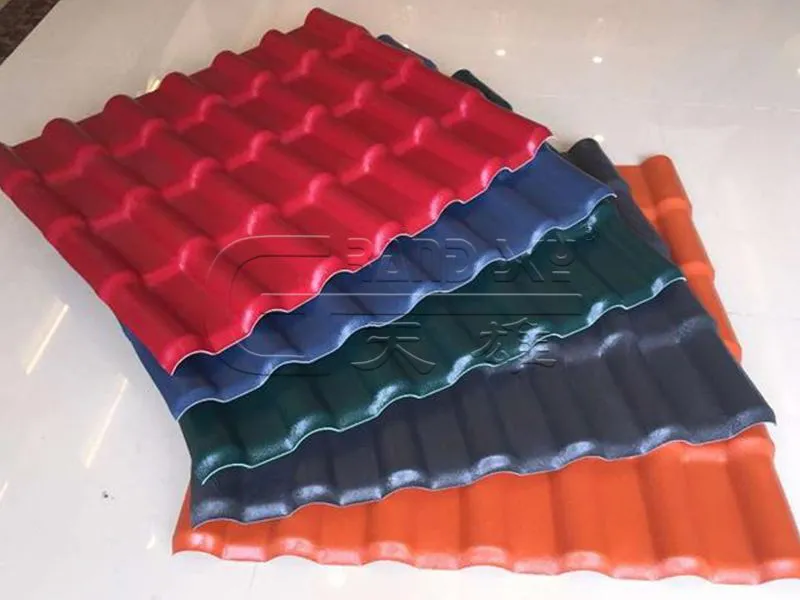

ASA film series products are mainly used for PVC resin tile surface coating process. Various colors can be prepared according to customer requirements.。
Products Description
ASA film Technical indicators
| Performance | Test standard | Test conditions | Unit | Highlight index | Matte index | |
| Mechanical | ||||||
| Transverse tensile strength | GB/T 1040 | 23℃ 20mm/min | MPa | ≥30 | ≥30 | |
| Longitudinal tensile strength | GB/T 1040 | 23℃ 20mm/min | MPa | ≥30 | ≥30 | |
| Specification requirements | ||||||
| Thickness deviation | GB/T 6672 | / | mm | ±0.005 | ±0.005 | |
| Width deviation | GB/T 6673 | / | mm | ±3 | ±3 | |
| Other performance | ||||||
| Transmittance | GB/T 2410 | Width≥0.06 mm | % | ≤15 | ≤15 | |
| Gloss | GB/TGB/T 9754 | 60° | ° | ≥70 | ||
| Gloss | GB/TGB/T 9754 | 60° | ° | ≤30 | ||
| Weather resistance | GB/T 16422.3 | △E*≤5 | h | ≥1000 | ≥1000 | |
| Chromatic aberration | Instrument measurement | GB/T 9761 | Under 40 W fluorescent lamp or natural light | △E* | ≤0.5 | ≤0.5 |
| Visual evaluation | / | ≤1 Level | ≤1Level | |||
